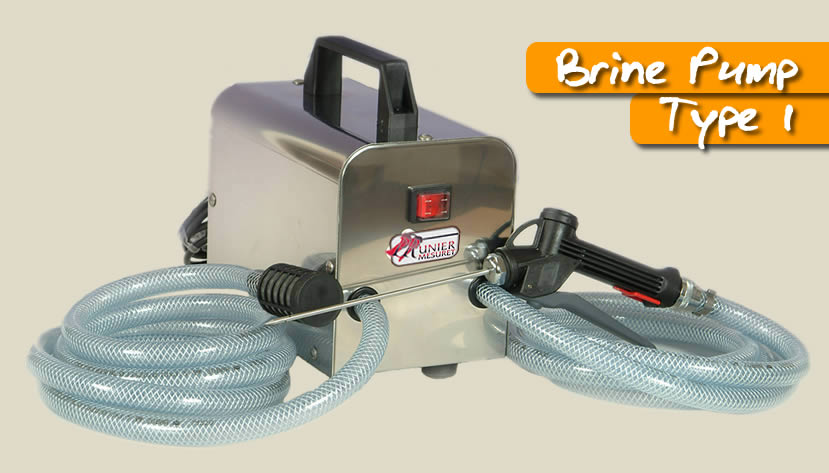

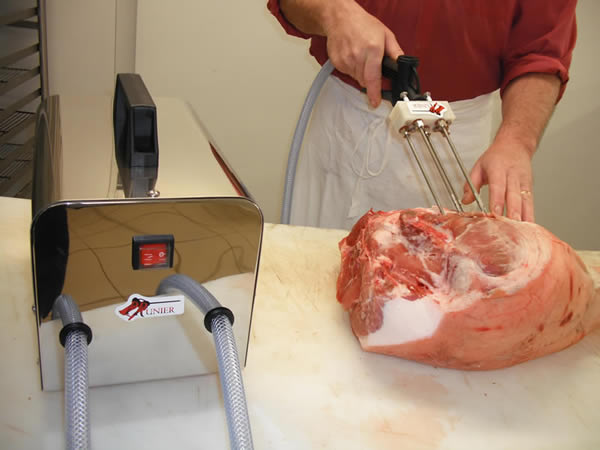

Brine Injector Pump

The beautiful small electric brine pump is great for hoteliers and caterers. Self priming with a constant flow rate. Automatic start and stop of motor if dry. Very low level operating noise.

Equipement:

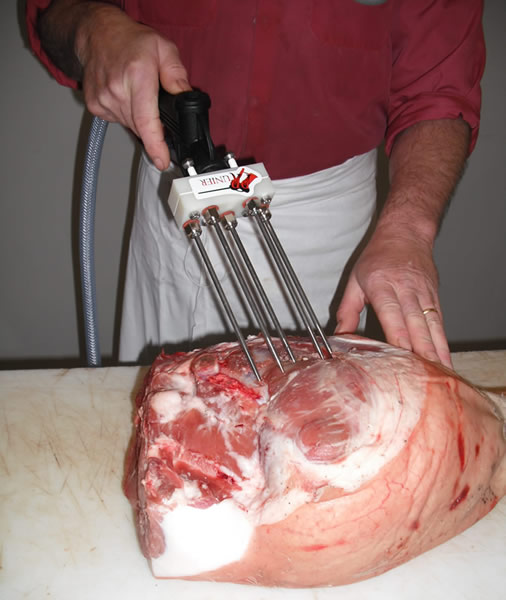

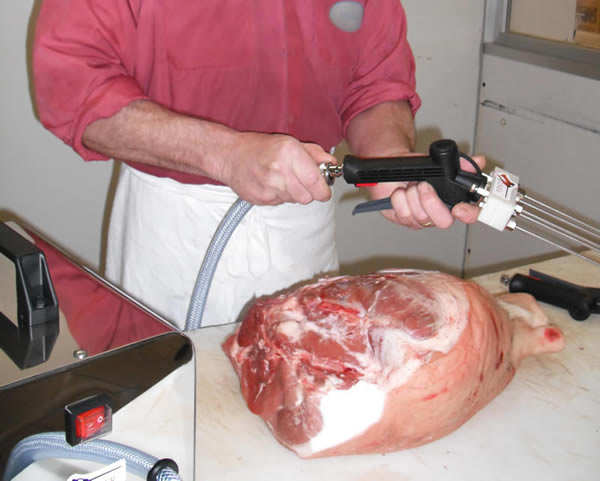

• 1 plastic injector pistol, with stainless steel tubing and 1 stainless steel spray needle (Long 220 mm diam. 4,2 mm).
• Injector and vacuum hoses (Long 2500mm diam. 13 mm).
• Removable suction filter for easy cleaning.
• Cover, chassis, components stainless steel AISI 304 thickness 10/10th.
• Black plastic bakelite carrying handle.
• 4 rubber foot pads.
• ON/Off illuminated switch with waterproof housing.
• Power cord with molded plug (Long: 2000 mm).
• Pressure 4 Bars - Flow 290 litres/ hr
• Dim. ext. L x P x H : 160 x 260 x 190 mm.
• Mono-phase 230 V + T 50 / 60 Hz .

Options:

• Male and female quick connect adapter with press-fit termination for needle bridge.

Directions and cautions:

• Ideal for butchers, caterers and hoteliers.
• Please note that this appliance is only suitable for minor meat curing.
• After use, it is recommended to flush the hoses with fresh water before storage.
• Store in a moisture free environment.

Spare parts:

• See → here for brine pump type 1 spare parts..
