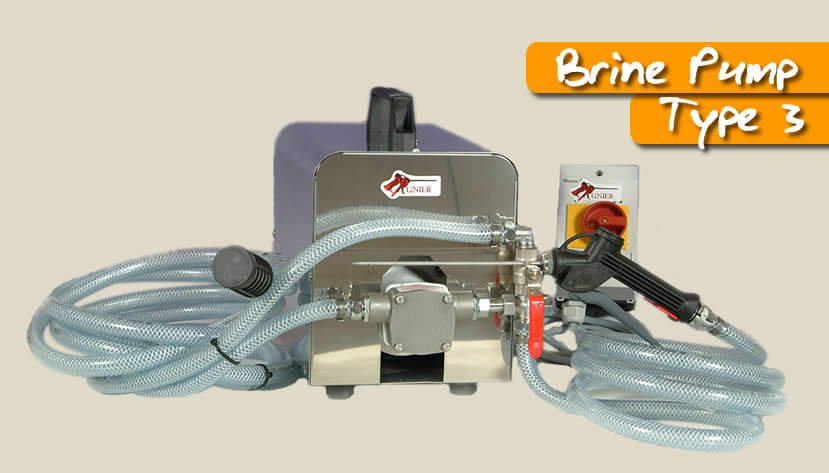

Brine Injector Pump

Designed for weekly use for butchers and caterers.Self priming with a constant flow rate. Automatic start and stop of motor if dry. Very low level operating noise.

Equipement:

• 1 plastic injector pistol, with stainless steel tubing and 1 stainless steel spray needle (Long 220 mm diam. 4,2 mm)
• Injector and vacuum hoses (Long 2500mm diam. 13 mm)
• Removable suction filter for easy cleaning
• Cover, chassis, components stainless steel AISI 304 thickness 10/10th
• Black plastic bakelite carrying handle
• 4 rubber foot pads
• 5 needle bridge ready
• ON/Off illuminated switch with waterproof housing
• Power cord with molded plug (Long: 2000 mm)
• Pressure 5 Bars - Flow 600 litres/ hr
• Dim. ext. L x P x H : 200 x 300 x 210 mm
• Mono-phase 230 V + T 50 / 60 Hz.

Options:

• Male and female quick connect adapter with press-fit termination for needle bridge.

Directions and cautions:

• Ideal for butchers, caterers and hoteliers.
• Please note that this appliance is suitable for curing 2 or 3 times per week Example 9 hams and a few small hams per week.
• After use, it is recommended to flush the hoses with fresh water before storage
• Store in a moisture free environment.

Spare parts:

• See → here for brine pump type 3 spare parts..
